The Pool of Reflection, Sydney
LOCATION: Hyde Park, Sydney, Australia.
BUILDER: Structus Pty Ltd
WATERPROOFING: Soleace Waterproofing Pty Ltd
TILING: Nationwide Tiling

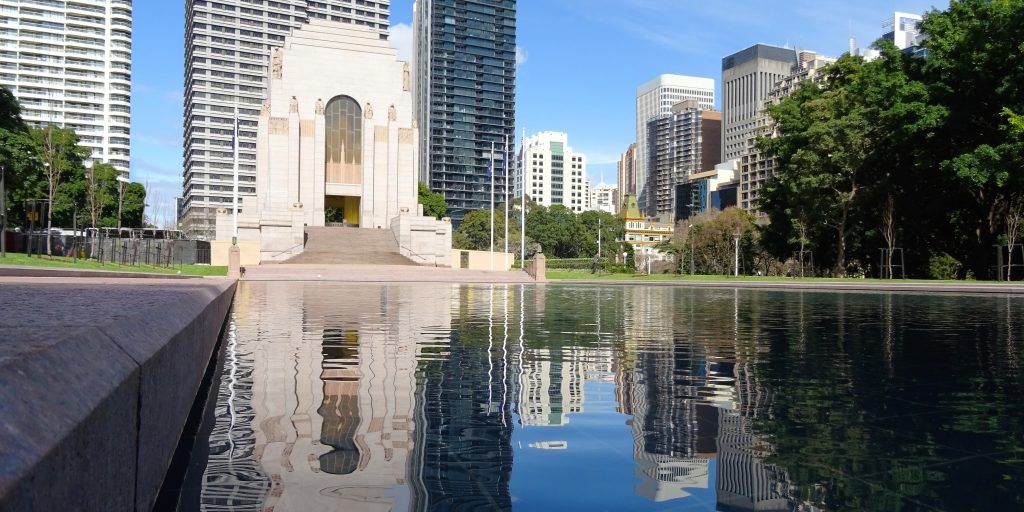

ARDEX Australia is proud to be involved in the restoration works surrounding the 1450sqm ‘Pool of Reflection’ Memorial which is located in Hyde Park in Sydney’s CBD. The upgrade of the physical pond was undertaken to repair leaks and improve water circulation and filtration. At each stage of the project, the Memorial was visited by dedicated ARDEX staff to provide support.
The Pool of Reflection is a peaceful space where passersby may pause for a moment of quiet contemplation. For manyveterans the still waters of the ‘Pool of Reflection’ evoked memories of the Somme River and its accompanying canals in France. The AIF (Australian Imperial Force) fought some of its bloodiest battles in the Somme Valley in 1916, 1917 and 1918.
CHALLENGE:
There were various challenges that ARDEX had to overcome in this project. One of the key challenges included containing water within the pool while at the same time keeping water out – the pool has expansion joints in the substrate and the concern was that the water coming up from the ground would push the moisture out.
SOLUTION:
ARDEX advised that an outlet was required before the pool was lined. This was done by running the ARDEX WPM 1000 Undertile Butynol Waterproofing Membrane parallel with the expansion joints, resulting in the membrane being turned into a joint with a stainless steel angle and then sealed off with ARDEX RA 88 Multipurpose Epoxy Repair Adhesive. A system of the ARDEX DS 60 Decoupling Mat was installed under a strip of ARDEX WPM 1000 to allow the gas and moisture build-up to escape. Also, ARDEX arranged for ARDEX WPM 1000 to be pre-cut to suit each of the joints, saving on time.
UNIQUE ELEMENTS:
The Pool of Reflection’s tiles could be bonded directly below the water line to the ARDEX WPM 1000 Undertile Butynol Waterproofing Membrane using ARDEX’ X 18 Fibre-Reinforced Flexible Non-Slump Wall and Floor Tile Adhesive, an adhesive that adds strength to a tiled area in addition to ARDEX E 90 Admix for Cement-Based Tile Adhesives. The installation was completed using ARDEX’ new ARDEX EG 15 Easy Clean High Performance Epoxy Grout providing contractors ease of use in addition to a complete system solution.

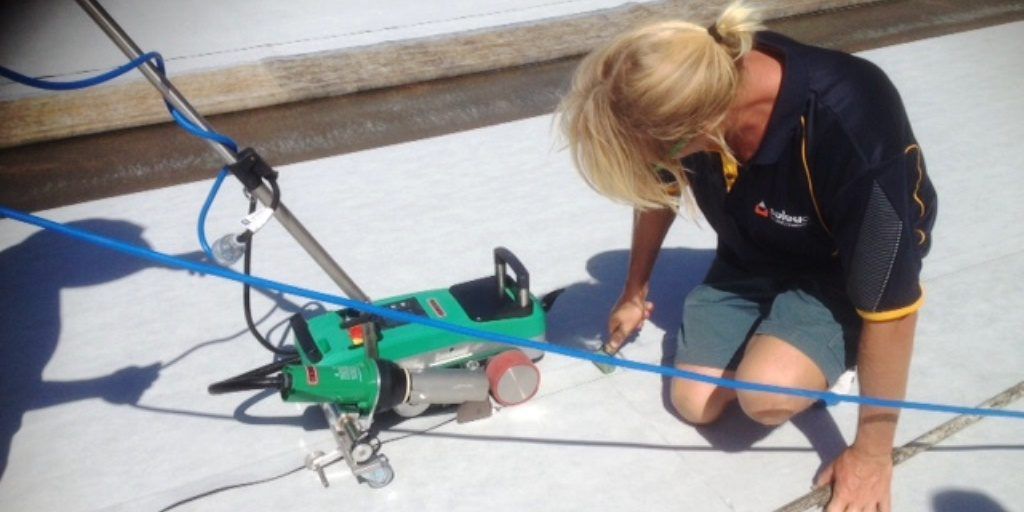

The installation of the main ARDEX WPM 1000 membrane was carried out by being fully glued with ARDEX WA 98 Butynol Adhesive. At the rear of the pool there is an overflow which the granite stone plinth has been fixed with ARDEX WA 100 Two Part Epoxy Adhesive for Natural Stone.
Products Specified for this project
-
ARDEX WPM 1000
WeldTecTM Versatile Waterproofing Membrane
- Compliant to AS4654, AS4858 and AS2904
- Flood testing / tiling / screeding can begin 60 minutes after membrane installation
-
ARDEX RA 88 PLUS
Multi-Purpose Epoxy Repair Adhesive
- Non-sag - Perfect for overhead and vertical repairs
- High strength - Stronger than concrete > 55Mpa
-
ARDEX DS 60 Decoupling Mat
Decoupling Mat
- Removable floor tiling system – remove tiles without damaging substrate
- Ideal for leased or heritage applications
-
ARDEX X 18
Fibre Reinforced Flexible Non Slump Wall and Floor Tile Adhesive
- Fibre reinforced for extra strength and peace of mind
- Excellent workability with low sand content
-
ARDEX E 90
Admix for Cement-Based Tile Adhesives
- Improves adhesion and imparts flexibility
- Provides a water repellent mortar – when tiling in showers, swimming pools
-
ARDEX EG 15
Easy Clean High Performance Epoxy Grout
- Use where strict hygiene standards, high chemical and physical resistance are required
- Exceptionally easy clean off
-
ARDEX WA 98 Adhesive
Butynol Adhesive
- Specially developed for bonding butyl rubber sheeting to roofing substrates
- Formulated for optimum performance for spraying
-
ARDEX WA 100
Two Part Epoxy Adhesive for Natural Stone
- Non-slump capability
- Strong permanent bond that will not deteriorate over time
