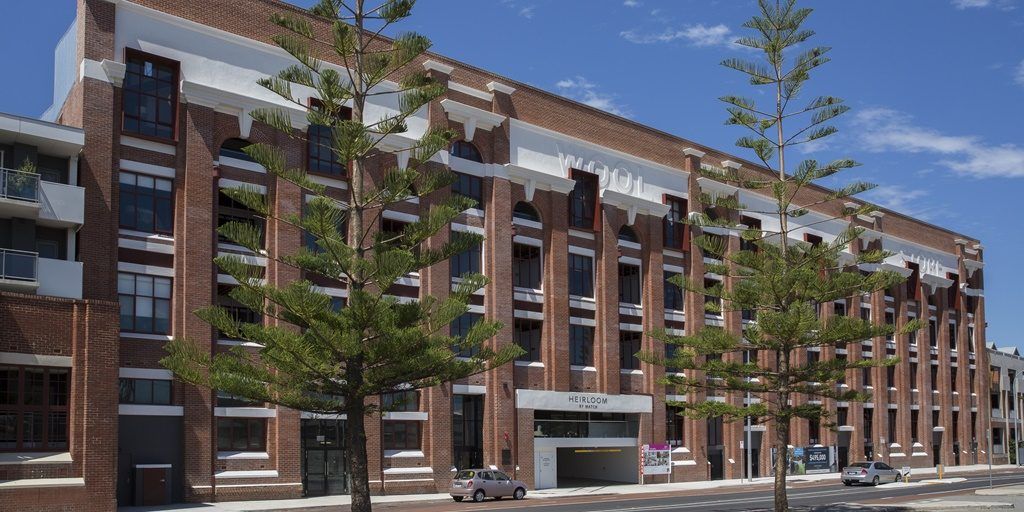

Heirloom Apartments, Fremantle
GENERAL CONTRACTOR: BUILT(Builder)
Located in the heart of Fremantle, the Heirloom apartments is situated a short walk from the South Terrace café strip, popular swimming beaches and the Fremantle Town Centre. The building itself was originally Fremantle’s Dalgety Wool Stores – a heritage listed building. This project helped demonstrate the versatility of converted industrial spaces.
The building itself was an old heritage listed wool store with old timber structure floors. The floors were also sheeted with JH Scyon, so special materials were needed to suit the system.
As part of the aesthetic, the architect had designed an open courtyard on the roof, which meant the roof had to be removed. This then exposed the Scyon flooring to external elements, which could cause liquid applied membranes to crack on the sheet joints.
With ARDEX WPM 002 Liquid applied membranes originally specified over the Scyon walkways which were covered by the roof, the original specification had to be rethought.
Sheet applied membrane systems was specified due to concerns about movement. If movement were to occur underneath a sheet membrane, it would then decouple from the substrate, thus eliminating issues of cracking with liquid membranes.
As ARDEX were the only manufacturer of fleeced and tileable sheet waterproofing membranes, ARDEX were able to provide the perfect solution. The contractors decided to proceed with ARDEX WPM 750 WeldTec Undertile Butynol as it resists tearing, flex cracking, bubbling and abrasion.
As an adhesive for the ARDEX WPM 750 sheet membrane, ARDEX WA 98 adhesive – specially formulated for Butynol applications – was used. ARDEX X 18, a strong fibre reinforced, flexible tile adhesive suitable for external applications, was then applied to fix the tiles down.

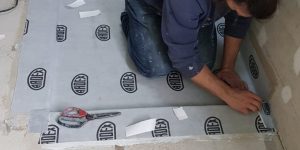

As opposed to liquid membranes, ARDEX WPM 750 sheet membrane gives a thin and consistent waterproofing gauge with tile installation able to commence 60 minutes after the membrane is installed. It is a sheet membrane designed for waterproofing tiled areas.
Products used for this project

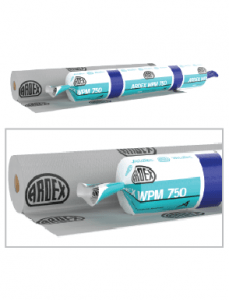

ARDEX WPM 750
WeldTecTM Internal Undertile Waterproofing Membrane
- Compliant to AS4858:2004
- Flood testing / tiling / screeding can begin 60 minutes after membrane installation
ARDEX WPM 002
(Superflex Two Part) Undertile Membrane
- Rapid drying time
- Advanced acrylic – will not re-emulsify
ARDEX X 18
Fibre Reinforced Flexible Non Slump Wall and Floor Tile Adhesive
- Fibre reinforced for extra strength and peace of mind
- Excellent workability with low sand content
More projects in Residential and Office Building
Holiday Inn Express Hotel – VIC
312 bathroom pods
Iglu Student Accommodation – VIC
594 bathroom pods with six different typologies
Mercure Hotel – VIC
166 bathroom pods
Midnight Hotel – ACT
183 architecturally designed bathroom pods
Vibe Hotel – TAS
132 architecturally designed bathroom pods
West Village – West End QLD
Office suites and apartments across multiple residential towers
DoubleTree by Hilton
DoubleTree by Hilton – Northbridge, WA
Crystalbrook Bailey, Cairns, QLD (Luxury Hotel & Residences)
ADGE Hotel Refurbishment
ADGE Hotel Refurbishment (formerly Cambridge Hotel) – Surry Hills, NSW
The Towers & Ritz Carlton, Elizabeth Quay
A New Iconic Building For Perth's Skyline

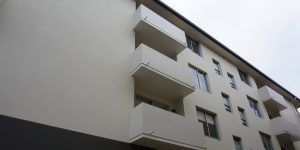

North Bondi Residential Apartments, Sydney
ARDEX concrete repair system specified for seaside residential block
Hitch Property Constructions – Waterproofing Refurbishment
ARDEX waterproofing membrane installed in bathroom refurbishment

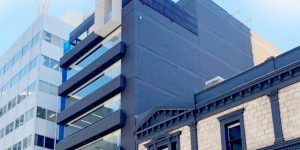

74 Pirie Street, Adelaide
ARDEX waterproofing system specified for roof terrace area
Cairns Corporate Tower, Cairns
ARDEX system specified to rejuvenate a building that posed unique challenges
Heirloom Apartments, Fremantle
ARDEX waterproofing and tiling systems used in heritage listed building.
The Elan, Sydney
Complete façade overhaul using SystemARDEX
The Hub Apartments, Richmond
The Hub was completed using a full System ARDEX solution.
Sandgate Apartments, 51 Ashburner St, Manly
ARDEX render and waterproofing system specified for unique, beach-side façade restoration.
Oracle Apartments, Broadbeach
SystemARDEX specified in large redevelopment project.
Ocean Marina Pointe Apartments, Mandurah
ARDEX adhesive used in Mandurah apartments upgrade

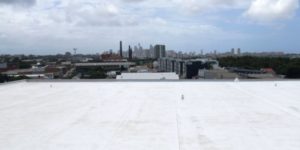

Residential Apartments, St Peters
500sqm of ARDEX TPO used to fix leaks

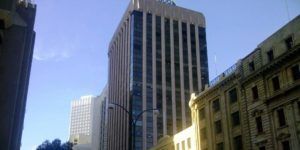

One Eleven St Georges Terrace, Perth
