Harbour Town Eats, Gold Coast
APPLICATOR: Vercon
GENERAL CONTRACTOR: Saba Bros Tiling Contractors
ARCHITECT: The Buchan Group Gold Coast – Stephen Jarvis

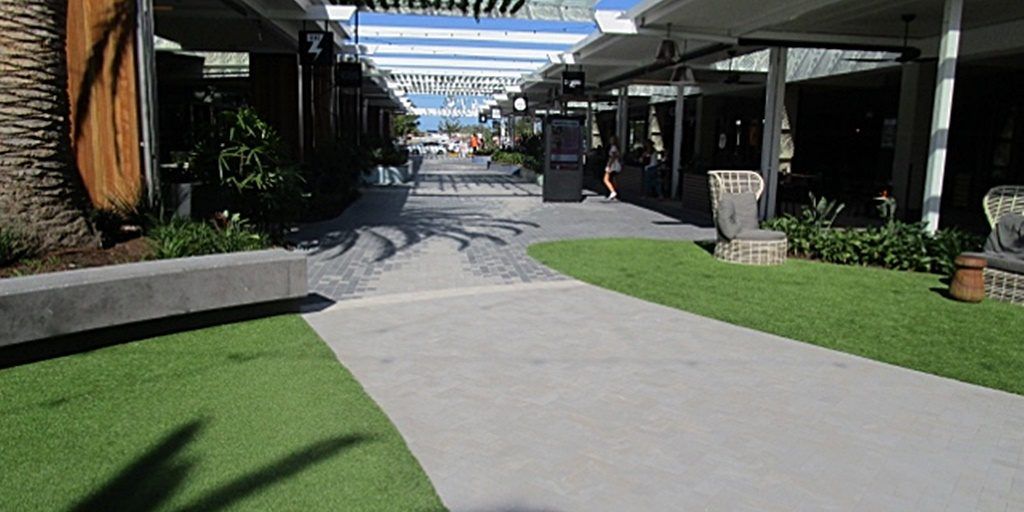

Harbour Town Eats is a multimillion-dollar dining space and food court in Australia’s largest outlet shopping centre. Based in the Gold Coast, Harbour Town Shopping Centre, Harbour Town Eats has an iconic outdoor open-air design. As one of the prime locations in Australia, it was important that the food court had excellent floor tiling solutions in line with the modern design of the surrounds.
The project involved renovating the food court from the cinema complex at one end to the decorative fountain at the other, which is a total of 4000m2 plus an extra 1000m2 of tile adhesive fixed direct to the new concrete.
Challenges
The primary challenge was that the substrate was formed in many small separate panels of concrete and/or brick paving with a central dividing walkway of pebblecrete and broken mosaics. One section of asphalt had to be removed and new concrete cast for the new tiles near the fountain.
Work had to be completed between 9pm and 6am every day as the cinemas and retail food outlets had to remain operating throughout the period.
Additionally, the tiles in the al fresco dining areas had to be laid in a French bond pattern using a mix of square and rectangular tile shapes up to 600 x 600mm in size. Whilst a similar style was laid in the central walkway.
There were some moisture concerns as the ARDEX system had not been used externally prior to this project. Finally, the thresholds of each retail food outlet had to be finished with minimal slope.
Solution
A specific ARDEX system was recommended to ensure a consistent and high-quality look. This system included ARDEX Flexbone UI 740 which is a high load-bearing, bonded, uncoupling membrane which is ideal for use with tiles and stone in high traffic areas. The system helps neutralise underlying substrate movement and supports and distributes heavy loads from above. It also helps prevent grout joint and tile damage from movement and deflection.
ARDEX Quickbond and ARDEX E 90 admix was the adhesive used which provided a quick-dry solution so no retail outlet was affected and could continue trade as normal. ARDEX FG 8 cement-based grout provided excellent workability and ensured a smooth finish.
The builder decided on using the recommended ARDEX Flexbone system as a result of moisture concerns. As the tiling contractor was not a familiar with ARDEX products, ARDEX provided resources onsite demonstrating the correct installation techniques.
Products Specified for this project
-
ARDEX UI 740 Flexbone
Uncoupling Membrane
- High load-bearing bonded uncoupling membrane
- Helps prevent grout joint and tile damage from movement and deflection
-
ARDEX Quickbond
Quick Setting Tile Adhesive
- Unique adhesive with fast setting properties - grout after 2.5-3 hours
- Good pot life - remains usable for up to 45 minutes
-
ARDEX E 90
Admix for Cement-Based Tile Adhesives
- Improves adhesion and imparts flexibility
- Provides a water repellent mortar – when tiling in showers, swimming pools
-
ARDEX FG 8
Flexible Coloured Grout for Tile Joints 1 to 8 mm Wide
- Strong uniform colour - reduces efflorescence
- Polymer fortified – reduces likelihood of cracking
More projects in Tiling
-
AURA, Sydney
This contemporary luxury apartment project highlights trusted performance and industry-leading service and warranty
-
Wai Ariki Hot Springs and Spa, Lake Rotorua, New Zealand
Luxury hot springs and spa situated on captivating shores
-
Olympic Aquatic Centre, London
Fit For Purpose: London 2012 Olympic Games
-
Therme Lindau, Germany
On one of the most beautiful stretches of Germany’s Lake Constance, nestles wellness oasis Therme Lindau whose seemingly floating design took an expert team 16 months to fulfill the architect’s vision.
-
Holiday Inn Express Hotel – VIC
312 bathroom pods
-
Iglu Student Accommodation – VIC
594 bathroom pods with six different typologies
-
Mercure Hotel – VIC
166 bathroom pods
-
Midnight Hotel – ACT
183 architecturally designed bathroom pods
-
Vibe Hotel – TAS
132 architecturally designed bathroom pods
-
West Village – West End QLD
Office suites and apartments across multiple residential towers
-
DoubleTree by Hilton
DoubleTree by Hilton – Northbridge, WA
-
Crystallbrook Bailey
Crystalbrook Bailey, Cairns, QLD (Luxury Hotel & Residences)
-
ADGE Hotel Refurbishment
ADGE Hotel Refurbishment (formerly Cambridge Hotel) – Surry Hills, NSW
-

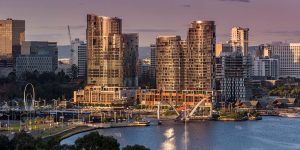

The Towers & Ritz Carlton, Elizabeth Quay
A New Iconic Building For Perth's Skyline
-
Miami Aquatic Centre, Miami, Gold Coast
Renovation on 40+ year aquatic facility installed with ARDEX tiling system
-

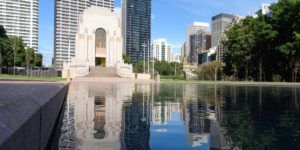

The Pool of Reflection, Sydney
Complete ARDEX system used for restoration works at Hyde Park memorial
-

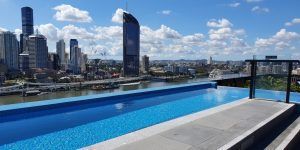

Austin Apartment Pool Refurbishment, South Brisbane
ARDEX system specified to refurbish tiles that have lost adhesion in a pool
-
Mercedes Benz Autohaus, Newstead
ARDEX system specified for unique 32,000 sqm auto dealership
-
Cairns Corporate Tower, Cairns
ARDEX system specified to rejuvenate a building that posed unique challenges
-

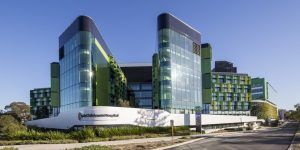

Perth Children’s Hospital
ARDEX system specified for high-profile Government project.
-

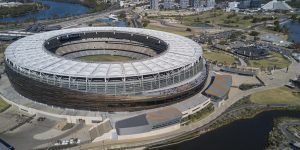

Optus Stadium, Perth
SystemARDEX specified for high end Government project
-
Harbour Town Eats, Gold Coast
External tiling system specified in the worlds largest installation of Flexbone.
-

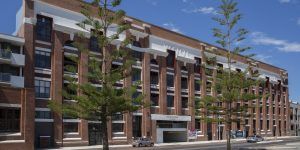

Heirloom Apartments, Fremantle
ARDEX waterproofing and tiling systems used in heritage listed building.
-

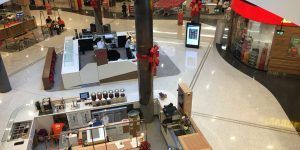

Marina Square, Wentworth Point
ARDEX tiling and grouting system used in major shopping centre.
-

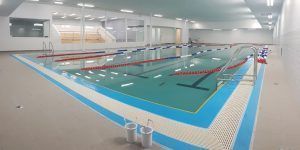

Box Hill Pool Refurbishment
ARDEX waterproofing and tiling systems used in Box Hill pool refurbishment.
-
Oracle Apartments, Broadbeach
SystemARDEX specified in large redevelopment project.
-
Ocean Marina Pointe Apartments, Mandurah
ARDEX adhesive used in Mandurah apartments upgrade
-
International Airport, Canberra
Canberra Airport upgrade
-

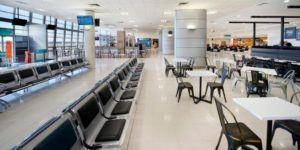

Airport, Newcastle
1600 sqm of natural stone laid using ARDEX adhesives
-

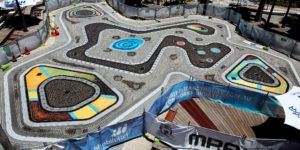

Water Playground – Elizabeth Quay, Perth
Complete ARDEX system chosen as part of Elizabeth Quay Development
-
Opera House Western Foyer, Sydney
ARDEX adhesive, grout and primer used at Sydney Opera House
-
Springs Day Spa & Fitness Centre, Noosa
Top performing ARDEX materials chosen for large scale upgrade
-

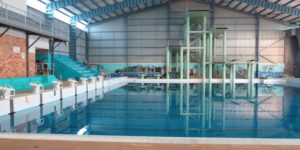

Lightning Ridge Olympic Pool
ARDEX tiling system specified for pool complex renovation
-

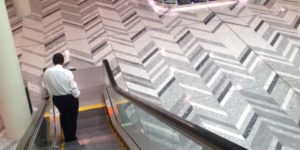

The Canberra Centre, Canberra
ARDEX adhesive used in large upgrade of The Canberra Centre
-
Warnbro Shopping Centre, Warnbro
ARDEX system specified in time critical project
-

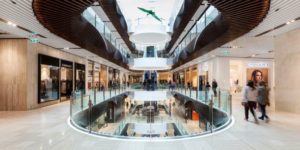

The Emporium, Melbourne
21,000 sqm of tiling completed using ARDEX adhesive and grout
-

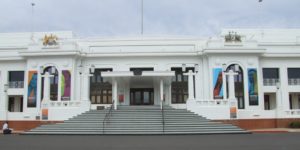

Old Parliament House, Canberra
ARDEX products were specified and used throughout the project
-

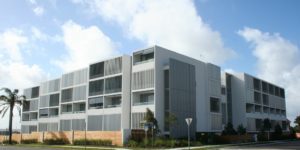

Lure Apartments, Nelson Bay
ARDEX sound proofing system used in new prestigious development
-

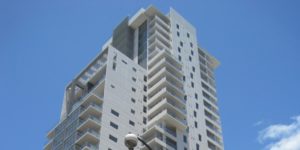

Elevation Apartments, Perth
ARDEX System used in prestigious development right in the heart of Perth’s CBD
-

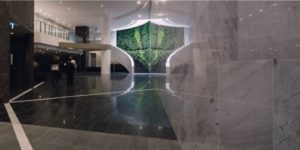

215 Adelaide Street, Brisbane
Refurbishment of office tower complex
-

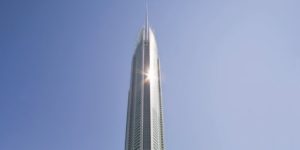

Q1 Surfers Paradise, Brisbane
ARDEX tile adhesives, soundproofing requirements, grouts and floor leveling were used in this residential tower
-

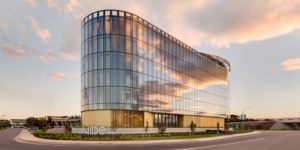

The Vibe Hotel, Canberra
